Industrial Delta Robot | Industrial Spider Robot

SWOER's Delta Industrial Robots and Industrial Spider Robots are excellent solutions for automation applications in the manufacturing industry. With intelligent design and flexible mobility, these robots not only increase efficiency but also reduce labor costs. In particular, their diverse application capabilities help improve efficiency in complex production lines, from assembly to product quality inspection.

Send Inquiry

Mô tả
Reviews (0)

Features of Delta AC-03 Robot

High precision and high speed robot
No programming required, easy to use
Convenient to use with driver, install in just one step
More flexible response to the need for robot applications in different fields

Parameter

Name	Scope	Name	scope
Type	SW-AC03	Repeat accuracy	±0.1mm
Voltage	AC220V	Flexible disc size	100*150mm
Capacity	500W	transfer method	servo motor

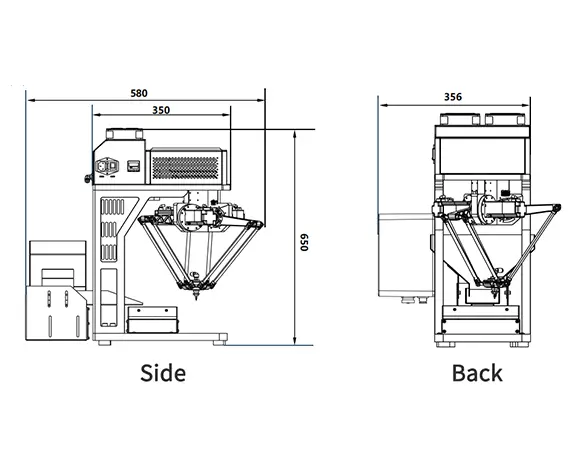

Size	224380650mm	light source	square white light
Weight	30kg	Vibration mode	Vibration motor
Scope of operation	250*300mm	Resolution	3072*2048pixel
Setting range	200*240mm	Air input source	0.4~0.6MPa
Maximum speed	0.4 seconds/piece	Outlet air pressure	4 Kg
