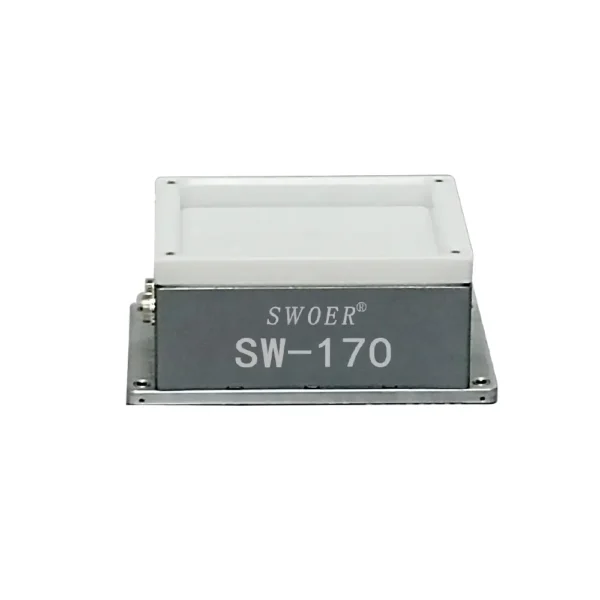

Flexible Feeder SW-170

The SW-170 flexible feeder is commonly used for screening small metal parts such as steel plates, springs and small connectors. With its precise and efficient sorting capabilities, the SW-170 helps optimize the production process, ensuring high speed and accuracy. The system is especially suitable for metal and electronic component manufacturing industries that meet strict requirements for quality and performance.

Detailed specifications

Type	SW-170
Size (mm)	240155101
Size of the feeder (mm)	17014019
Cheavy grace	About 3.9kg
Voltage	DC20-30V(Recommended 24V)
Maximum current	6A
How it works	Move up, down, left, right, top left, bottom left, top right and bottom right, middle up and down, middle left and right, shake and flip, and vibrate directly to load
Regularity	10~131Hz
Operating noise	<50dB
Maximum load	0.5kg
Weight of a single flipped material	<15g
Signal interaction	TCP/IP communication
Signal interaction	Input/Output Interface
